How do I configure my LD6 to use the Apex service?
Note: After changing the PPP solution to APEX the demodulator will then require up to 30 minutes to reconverge and output a PPP position.
The method of changing PPP service will differ, depending on LD6 version in use. To check LD6 version see How do I tell which version of LD6 I have?
LD6 Versions 8 & 50

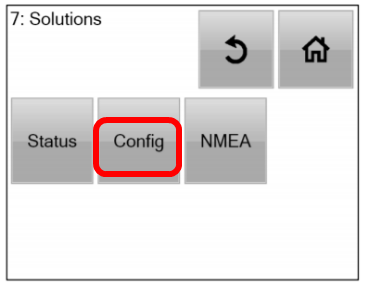

From LD6 Home screen select Solutions > Config:
Once Solutions > Config has been selected use the arrow options on the right-hand side to get to PPP Service and current service will displayed.
To change the PPP service to APEX select Use Apex:
Note: If the current service in use is already APEX Use Ultra will be displayed. If this is the case no further configuration will be necessary.
The LD6 will request confirmation for this change. A warning box will appear to alert the user that switching between PPP solutions will lead to a settling period, where a loss of PPP solution output will occur:
LD6 Versions 101 & 105
From LD6 Home screen select GNSS > Config:
Use the right-hand arrows to scroll to the PPP Config page and select Edit. Then use the arrow icons to select Apex. Press Enter to confirm the selection, followed by Close. If the current service in use is already Apex no further configuration will be necessary.
