What are the serial pin-outs of the LD6?

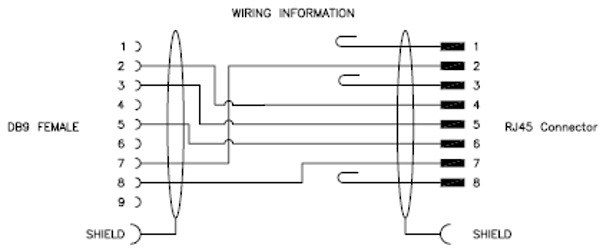

LD6 receivers have RJ45 serial connectors therefore are supplied with RJ45 to DB9 (Female) adapter cables. The wiring for these cables is shown below:
The table below shows the RS232 and RS422 serial pin-outs for the LD6 receiver (Note: The LD6 is the transmitting device):
|1||Not connected||Not connected|
|4||Not connected||Not connected|
|5||Signal ground||Signal Ground|
|6||Not connected||Not connected|
|9||Not connected||Not connected|
